Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door

    Buy cheap Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door from wholesalers

    Buy cheap Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door from wholesalers
    • Buy cheap Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door from wholesalers

    Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door

    Ask Lasest Price
    Brand Name : ZHONGWO
    Model Number : ZW-ULGFMZP09
    Certification : UL; ISO9001:2008;
    Price : Negotiable
    Payment Terms : western union, moneygram,cash, l/c, t/t
    Supply Ability : 600 Sets per Day
    Delivery Time : 30 Days After Payment Received
    • Product Details
    • Company Profile

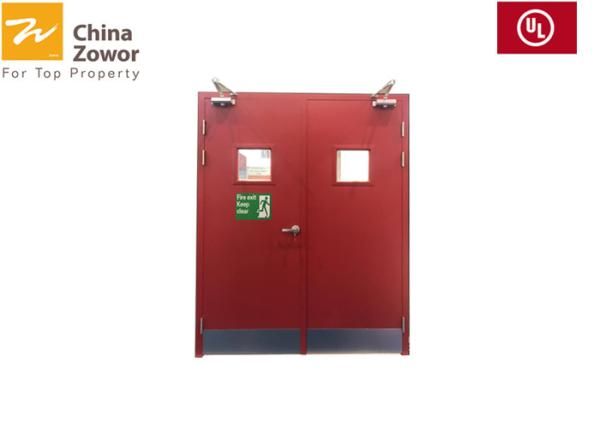

    Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door

    Commercial Internal Fire Doors Fd30 Cheap Fire Resistant Door Red With Louver


    Fire Resistant Door Red


    Description:


    Face:0.8 mm Gal. Steel
    Core:Magnesium Oxide Fireproof Board;
    Skeleton:1.5 mm Gal. Steel, U-Type, Size 38 mm by 30 mm
    Astragal:0.8 mm Gal. Steel, Size: Wide 25 mm by Thick 2 mm
    Smoke Resisting Sealant:Location: Around door edges & Under astragal
    Fire Lock1 set

    Structure:


    Frame:


    Type: 3-part or 4-part knockdown frame

    Material: 1.2 mm thick zinc-plated steel

    Frame width: 120 mm

    Usage: Built wall

    Reinforcement: Lock, closer, 3mm steel plate on hinge side

    Connector: 0.8 mm thick steel plate

    Shapes: Lock cover on lock side


    Reinforcements


    · Top and bottom of doors shall be reinforced with continuous 16-gauge steel channels, spot welded to both sides of doors.

    · Hinge reinforcements shall be 11-gauge steel angle, 12" long

    · Cylindrical lock reinforcement shall be 16-gauge with 11-gauge thread depth. Other lock and closer reinforcements shall be 12-gauge.

    · Doors shall be reinforced for all surface type hardware. Drilling and tapping of surface hardware to be done in the field by the erector.

    · Edges of door shall be continuously seam welded, ground, and filled to ensure a smooth finish.


    Quality Honeycomb Infilling 90Mins Fd30 UL Listed Fire Door for sale
