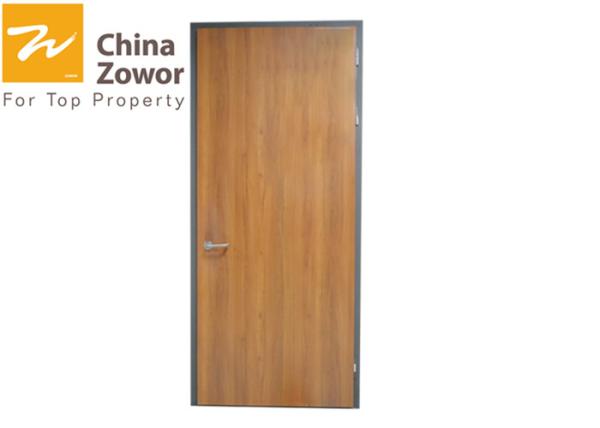

Single Swing Right Handed Fire Safety Door Wood Grain Finish Galvanized Steel

Zhongwo UL Steel Fire Door

Fire-rated doors play important role in protecting people from damage in case of fire, in order to reach this goal, fire-rated doors must be a fire and smoke barrier.

Zhongwo steel fire doors pass through fire test in accordance with fire resistant standards such as NFPA252, UL10(b), UL10(c) and CAN/ ULC S104. And they are rated for 45, 60, 90, 100, 120 and 180 minutes fire withstanding ability.

Application

Hotels

power plants

Auditoriums

software parks

Restaurants

shopping malls

industrial plants

telecom centers

high-rise buildings

metro railway stations

cellular network stations

garment processing units

Door Leaf

Main material of Zhongwo UL steel fire doors is galvanized steel or stainless steel. Thickness of the steel sheet is 1.0 mm or 0.8 mm. As for filler we use magnesium oxide board as first choice, however, we have of course options for you such as fireproof perlite board, honeycomb kraft paper, polyurethane foam and mineral wool.

Door thickness by us is 45 mm despite of different fire ratings.

Most popular door opening is 3’ wide by 7’ high for single door and 6’ wide by 7’ high for pair door. Max. Door opening for single door is 1200 mm by 2400 mm; for double door is 2400 mm wide by 2400 mm high.

Note: The sizes mentioned above are for the door leaf and do not include the frame.

We have various kinds of door finishes for your choice. By default we apply powder coating in RAL colors; you can also customize wood grain finish such as rosewood, walnut wood and oak wood grain. Moreover, we can also offer any door in stainless steel 304 grade.

Vision Panels

Attention: In circumstances where fire doors with fire rating longer than 2 hours, we do not suggest doors with glass inserts.

Frame:

Package & Delivery

Steel fire doors and frames are individually packed by us. For doors we wrap one layer PE paper at first, then clip 4 foam plates at four edges and corners, after that the door is laid into one strong carton; For frames firstly it is wrapped around PE paper, then put it into strong carton.

Customization: Wooden or Steel Pallet

Transport

Transportation by us is of different kinds and you can choose from ships, trucks, railways and aircraft.

Door to door delivery is also at your service.

Henan Zhongwo Fire Science and Technology Co., Ltd, founded in 1995, is a rapid expanding manufacturing company in fire door industry. After 24 years development Zhongwo has become a leading fire door manufacturer all over in Central China. We are always keeping good cooperation relationship with many high-end real estate builders such as Green Garden and Evergrand and many reaseach institutes such as The Architectural Design And Research Institute of Henan Province. And we have always been enjoying good reputation around our partners domestically and internationally.

Our factory concentrate on the production of all kinds of fire doors from different materials such as galvanized steel, pine wood, chinese fir wood, 201/304 stainless steel and also fire resistant floating glass. Steel fire door is our highlight product, with advanced surface treatment such as powder coating, heat transfer printing and copper wiredrawing we win great advantage for our steel fire doors of high wear tolerance,high decoration performance, anti-damp performance and anti-rusty character and so on. As far as wooden fire door is concerned, we have painting free wooden fire door series, baking paint wooden fire door series and refuge room wooden fire door series.Now we can supply more than 100,000 fire door sets a year in our more than 50000㎡ existing workshop. We also have a new factory under construction which covers a field of 30 arces in Minquan of Shangqiu City,which is 200km away from our existing factory. By then our annual production ability can reach 300,000 fire door sets.

Our production ranges also to fire roller shutters, fire windows and smoke curtains of various customized sizes, colors and materials.

Zhongwo attaches great importance to technical explore and development of new products and technik. We organize a specialized technical panel who all have more than 8 years of R&D experiences in fire door industry for development of new products and technik. Thanks to their hard work we can lauch more than 5 patents a year.

Zhongwo always adheres to the value system of “creating value for customers, building platform for employees and developing brand for Zhongwo”. Under such value system, Zhongwo keeps looking for excellent partners to influence ourselves to become better. We keep striving in order to be a fixed star in the development history of door industry.
