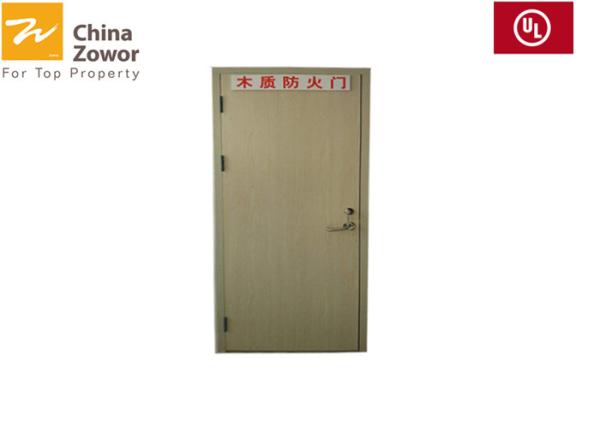

52mm Thick 1 Hour Rated Fireproof Wooden Doors/ Teak Wood Veneer Finish/ Color Choice Available

BS Wooden Fire Rated Doors

Founded in 1995 and located in Zhengzhou city, capital of Henan province, Henan Zhongwo Fire Science And Technology Co., Ltd has developed into a leading manufacturer of wooden fire rated doors all over China.

Our fire rated wooden doors are all tested to standard BS476:part22.

Fire ratings shall be 30mins, 60mins and 90mins.

Door Leaf

Standard construction of our wooden fire doors are made of 38mm thick perlite board fillers, 38mm thick solid wood skeleton, 4mm thick fireproof boards on each side and 3mm MDF board inclusive finishes on each side, thus total thickness of door leaf is 52mm. Besides, door edges are normally covered with wood lippings.

By the way, we have also different options of fireproof fillers such as particle boards and honeycomb paper. Particle board is option for 60mins fire doors and honeycomb paper for 30mins fire doors.

According to our certificate we can customize any size of doors between 650mm(2’2’’) and 915mm(3’) in width and 700mm(2’4’’) and 2300mm(7’6’’) in height.

Frames

There are two kinds of frames to match our wooden fire doors, solid wooden frames and metal frames.

Solid wooden frames are made of 38mm thick Chinese fir wood with 4mm thick fireproof board on inner side of frames, surface can be polished, baking painted, HPL, Melamine or Laminate finished.

Size of solid wooden frame is normally 45mm thick by 94mm wide. Customization is available.

By the way, solid wooden frames can also be shaped in T-type.

Metal frames are made of 1.2mm thick galvanized steel, popular frame depth are 94mm, 110mm, 120mm,150mm and 200mm, we can also customized for you. Besides, surface is by default powder coated in RAL color system.

By the way, stainless steel frames are also available.

Archtraves

As far as architrave is concerned, popular width are 50mm, 60mm,70mm and 80mm, popular thickness are 12mm and 15mm.Finish of architrave can also be polished, painted or with HPL and melamine laminated.

Finish

Finishes of our wooden fire doors are divided into three choices:

1. HPL Finish

which means high pressure laminates, is our most recommended choice for you because of its advantage in anti-UV,high strength, fireproof performance, impact, water and humidity resistance. Thickness of HPL by us ranges from 0.5mm to 3mm, colors and texture on surface can also be customized as your request.

2. Baking Paint

We have two kinds of baking paint processes for your choice: Baking Paint with Veneer and Baking Paint with Mixed Oil. Both processes demonstrate more decorative beauty than other finishes, therefore the whole door looks more high-ended.

3.Melamine Finish

Zowor melamine finish is melamine paper pasted on the base of MDF board. Standard thickness is 0.5/0.6mm, size is normally 1220mm wide by 2440mm high, colors and surface texture can be chosen and customized as your request.

Package

Standard Package: PEP Paper on both sides+ Foam Channel Around 4 Edges and Corners + Foam Plate on both sides on PEP Paper + Strong Carton

Options:Wooden Pallet, Wooden Box

If you have any special requirements, please just tell us.

Hardware & Accessories

As for hardware and accessories we can supply you with these items together with doors, or you can also buy them yourself from other suppliers. But if you need us open holes for your hardware in door leaf, please send us your hardware samples.

More Infos:

Note: Quantity in container is calculated based on sizes of door leaf.

Henan Zhongwo Fire Science and Technology Co., Ltd, founded in 1995, is a rapid expanding manufacturing company in fire door industry. After 24 years development Zhongwo has become a leading fire door manufacturer all over in Central China. We are always keeping good cooperation relationship with many high-end real estate builders such as Green Garden and Evergrand and many reaseach institutes such as The Architectural Design And Research Institute of Henan Province. And we have always been enjoying good reputation around our partners domestically and internationally.

Our factory concentrate on the production of all kinds of fire doors from different materials such as galvanized steel, pine wood, chinese fir wood, 201/304 stainless steel and also fire resistant floating glass. Steel fire door is our highlight product, with advanced surface treatment such as powder coating, heat transfer printing and copper wiredrawing we win great advantage for our steel fire doors of high wear tolerance,high decoration performance, anti-damp performance and anti-rusty character and so on. As far as wooden fire door is concerned, we have painting free wooden fire door series, baking paint wooden fire door series and refuge room wooden fire door series.Now we can supply more than 100,000 fire door sets a year in our more than 50000㎡ existing workshop. We also have a new factory under construction which covers a field of 30 arces in Minquan of Shangqiu City,which is 200km away from our existing factory. By then our annual production ability can reach 300,000 fire door sets.

Our production ranges also to fire roller shutters, fire windows and smoke curtains of various customized sizes, colors and materials.

Zhongwo attaches great importance to technical explore and development of new products and technik. We organize a specialized technical panel who all have more than 8 years of R&D experiences in fire door industry for development of new products and technik. Thanks to their hard work we can lauch more than 5 patents a year.

Zhongwo always adheres to the value system of “creating value for customers, building platform for employees and developing brand for Zhongwo”. Under such value system, Zhongwo keeps looking for excellent partners to influence ourselves to become better. We keep striving in order to be a fixed star in the development history of door industry.
