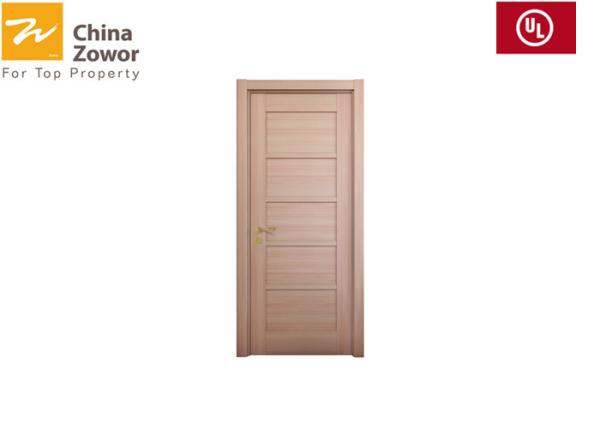

BS Standard Painting Finish 90mins Fire Resistant Wooden Doors with Oak Wood Veneer

Fire Resistant Wood Doors

Product Description

Fire doors are one of the fireproof separation facilities of buildings. They are usually used on firewalls, stairwell entrances or pipe openings, and play an important role in reducing fire damage.

The door leaf consists of fire -retardant Chinese fir skeleton inside of which environment friendly pertile fire board is filled,and decorative layer with fire panel. The reasonable structure makes the whole door withstand high temperatures up to 1000 ℃. The decorative surface adopts melamine veneer, which has high compressive strength and scratch resistance and can adapt to the harsh construction environment. Optional decorative surface can achieve better decoration effect.

The door frame adopts the composite structure of fire retardant Chinese fir and fire board, and adds a layer of fire board with thickness up to 8mm on the face of wood to meet the fire. The decorative style can be customized according to the needs of users. All the contact parts of door frame and door leaf are equipped with fireproof and smoke resistant expansion sealing strips, which can expand at critical time to prevent deadly smoke from passing through.

Standard Hole Size

Single open - 0618 0620 0820 0821 0824 0920 0921 0924 1020 1021 1023

Double open - 1220 1221 1223 1520 1521 1523 1820 1821 1823 2020 2021

Main Technical Performance

1. Fire Resistance Rating: Grade A is 1.5h, Grade B is 1.0h, and Grade C is 0.5h.

2. Sound Insulation: It has good sound insulation effect, and the sound insulation index of Grade C products is RW ≥ 23dB.

3. Decorative: Electrostatic powder spray on surface, beautiful and durable, available in a variety of colors to choose.

Features

Fire Rating: 30/60/90mins

Leaf: 45/50/55mm

Material: Solid wood as Skeleton

Filler: Fireproof Perlite Board or Particle Board

Transition Layer: MDF or Magnesium Oxide Fireproof Board

Finish: Veneer, Paint, Laminate, HPL or customize

Options:

Architraves: 60/70/80mm wide by 25/35mm thick with optional finish

Cover: Wall thickness ranges from 150mm, 180mm, 200mm to 300mm, customization is available.

Dimensions

Single Door: Standard 3’ X 7’(915 x 2134mm); Max. 4’ X 8’(1200 x 2400mm)

Double Door: Standard 6’ X 7’(1828 x 2134mm); Max. 8’ X 8’(2400 x 2400mm)

Determination of the Opening Direction of Fire Doors

The fire door is generally a normally closed external door, and it opens in the direction of evacuation. Standing on the front of the door facing the hinge, if the hinge is on your right, it’s opening outward right.

Fire Resistance Rating Classification

Henan Zhongwo Fire Science and Technology Co., Ltd, founded in 1995, is a rapid expanding manufacturing company in fire door industry. After 24 years development Zhongwo has become a leading fire door manufacturer all over in Central China. We are always keeping good cooperation relationship with many high-end real estate builders such as Green Garden and Evergrand and many reaseach institutes such as The Architectural Design And Research Institute of Henan Province. And we have always been enjoying good reputation around our partners domestically and internationally.

Our factory concentrate on the production of all kinds of fire doors from different materials such as galvanized steel, pine wood, chinese fir wood, 201/304 stainless steel and also fire resistant floating glass. Steel fire door is our highlight product, with advanced surface treatment such as powder coating, heat transfer printing and copper wiredrawing we win great advantage for our steel fire doors of high wear tolerance,high decoration performance, anti-damp performance and anti-rusty character and so on. As far as wooden fire door is concerned, we have painting free wooden fire door series, baking paint wooden fire door series and refuge room wooden fire door series.Now we can supply more than 100,000 fire door sets a year in our more than 50000㎡ existing workshop. We also have a new factory under construction which covers a field of 30 arces in Minquan of Shangqiu City,which is 200km away from our existing factory. By then our annual production ability can reach 300,000 fire door sets.

Our production ranges also to fire roller shutters, fire windows and smoke curtains of various customized sizes, colors and materials.

Zhongwo attaches great importance to technical explore and development of new products and technik. We organize a specialized technical panel who all have more than 8 years of R&D experiences in fire door industry for development of new products and technik. Thanks to their hard work we can lauch more than 5 patents a year.

Zhongwo always adheres to the value system of “creating value for customers, building platform for employees and developing brand for Zhongwo”. Under such value system, Zhongwo keeps looking for excellent partners to influence ourselves to become better. We keep striving in order to be a fixed star in the development history of door industry.
