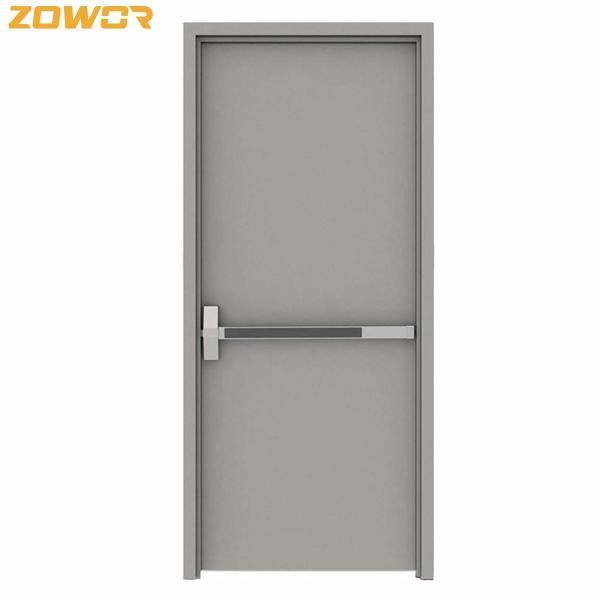

Flush Panel Stainless Steel Fire Rated Doors For Commercial
Buildings/ 30/60/90 min Fire Rating
Commercial Stainless Steel Fire Rated Doors
Product Description
Material: The door frame adopts stainless steel plate not less than
1.2mm thick
The door fan adopts stainless steel plate not less than 0.8mm thick
Hardware accessories: choose famous high-grade fire locks, door
closers, fire prevention hinges, order, bolt and other hardware
accessories, has many characteristics, such as the use of flexible,
safe and reliable, and are approved by the national inspection
agency inspection, the performance meet GB12955-2008 appendix A, B,
C, D
Applicable place: the stainless steel plate fire door is suitable
for the high-level places such as mechanical and electrical room,
nuclear power plant, and subway, airport, cinema, etc.
Features
Excellent heat insulation performance: Fire-resistant adhesive is non-combustible material, and it will
gradually foam, expand to the condition of carbonation when heated
, therefore it can reduce heat radiation and heat transfer
effectively.
High Anti-Explosion Performance: It remains high yield strength and creep strength even at higher
than 900℃,therefore it can effectively avoid explosion in case of
fire.
Top Fire Insulation Performance: Average temperature rise of unexposed surface reaches 94.2℃,
highest temperature rise at single point reaches 148.6℃, both are
far away lower than the standard of not beyond 140℃ and 180℃. And
the highest temperature point on door frame reaches 140.8℃, also
much lower than the standard of not beyond 360℃.
Accessories
| Door Closer | 2 |
| Composite Insulated Fire Glass | 2 |
| Fire Lock | 1 |
| Fire Hinge | 6 |
| Fire Latch | 2 |
| Fire Intumescent Seals | 15*2 (W*T mm) |
| Perlite Fire Door Core Board | 1 (300±30)kg/m³ |
| Drawboard | 17*2.4(mm) made of 0.8mm Galvanized Steel Sheet bending, a part of
door leaf panel. |
| Door Leaf Panel | 0.8mm Cold Galvanized Steel Sheet |
| Fire Sequencer | 1 |
| Class | A |
| Grade | A/B/C |
| Fire Resistance Rating | 0.5/1/1.5 Hours |
| Dimension | Standard: 2100*2300 (mm) or Customized |
| Standards | GB12955-2008 |
Specification
| Product Name | Flat Panel 201/304 Stainless Steel Fire Door |
| Fire Rating | 30 min/60 min/ 90min |
| Certificate | CCC, ISO9001:2008 |
| Material of Door Leaf | 201/304 Stainless Steel |
| Material of Door Frame | 201/304 Stainless Steel |
| Thickness of Steel Sheet of Door Leaf | 0.8 mm |
| Thickness of Steel Sheet of Door Frame | 1.2 mm |
| Thickness of Door Leaf | 90min: 55 mm 60min: 45 mm 30min:40 mm |
| Frame Depth | 90min: 120 mm 60min: 112 mm 30min: 90 mm |
| Size | Standard: W1000 X H2300(mm); 700X 2300(mm) or Customized |
| Open Style | Swing Open |
| Infilling Material | 90min: 53 mm Fireproof Perlite Board(400±40kg/m3) 60min: 43 mm Fireproof Perlite Board(300±30kg/m3) 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) or Honeycomb Paper |
| Surface Treatment | Finished |
| Color | Silver |
| Fireproof Seal Strip | 90min: FPJ-B-20X 2 60min: FPJ-A-15X 2 30min: FPJ-A-15X 2 Or Customized |
| Warranty | 2 years |
| Package | Inside Bubble Bags+ Strong Carton+Wooden Frame |
| Delivery Time | 35 Days After Payment Received |
