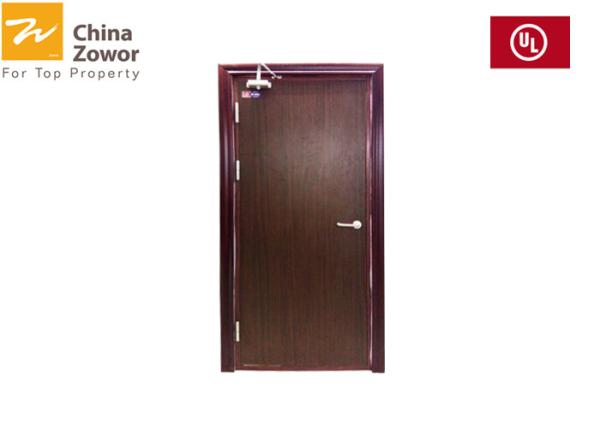

90 Minute Fire Rated Timber Door For Residential Building/ HPL Finish/ Max. 4'X8'

FD90 Wooden Fire Doors

Zhongwo was established in 1995, after 24 years development she has become No.1 manufacturer in fire door industry in central China.

With two facilities of more than 32.12 acres she produce all kinds of fire doors such as steel fire doors, wood fire doors and wood fire doors with steel frames.

Workshop for steel fire doors covers more than 22 acres in which there are two modern production lines. With them we can provide for you up to 1200 doors each day.

Standard hole size

Double open - 1220 1221 1223 1520 1521 1523 1820 1821 1823 2020 2021

Fire doors are one of the fireproof separation facilities of buildings. They are usually used on firewalls, stairwell entrances or pipe openings, and play an important role in reducing fire damage.

In the high-rise civil building design fire protection standard, the fire doors are classified into Grade A, B and C, and the fire resistance rating is specified. Grade A doors are not less than 1.5 hours, Grade B doors are not less than 1.0 hours, Grade C must not be less than 0.5 hours.

In addition to fire assistant function, due to its beautiful appearance, convenient installation and good decorative performance, Zhongwo wooden Fire doors are widely used in all kinds of civil and industrial buildings.

The wooden fire doors are divided into two series of full and half glass, as well as single and double leaves.

Door panel (plane) : the surface has wood texture, embossed plate embossed, decorative visual sense is stronger.

Frame: after improved process based on M2 door case, increase after grinding, polishing processing, such as mirror surface, the new technology of coated PVC, USES the PUR glue, hot, does not glue, surface texture clear, strong sense of wood grain simulation, waterproof, acid and alkali from natural fire, put out, do not fade, etc.

Main Technical Performance

1. Fire Resistance Rating: Grade A is 1.5h, Grade B is 1.0h, and Grade C is 0.5h.

2. Sound Insulation: It has good sound insulation effect, and the sound insulation index of Grade C products is RW ≥ 23dB.

3. Decorative: Electrostatic powder spray on surface, beautiful and durable, available in a variety of colors to choose.

Determination of the Opening Direction of Fire Doors

The fire door is generally a normally closed external door, and it opens in the direction of evacuation. Standing on the front of the door facing the hinge, if the hinge is on your right, it’s opening outward right.

Features:

• 3mm thick galvanized steel plate on sides of hinges, closer and locks.
• Double U-type 43mm X 25mm skeleton made of 1.2mm galvanized steel.
• 25mm X 2mm gap covering stripe made of 0.8mm galvanized steel.
• Glazing bead made of 0.8mm galvanized steel
• Steel covers on the lock sides made of 0.8mm galvanized steel for decoration
• Continuously welded edges

Hardware

UL listed door holders, hinges, locksets are standard choice for you. More options are aligners, stoppers, magnetic door holders etc.. We can also supply hardware to other standards upon request.

Remarks: If you don’t need hardware but only punching holes, please send us some samples of your ironmongery so that we can make it precise in door manufacturing.

Henan Zhongwo Fire Science and Technology Co., Ltd, founded in 1995, is a rapid expanding manufacturing company in fire door industry. After 24 years development Zhongwo has become a leading fire door manufacturer all over in Central China. We are always keeping good cooperation relationship with many high-end real estate builders such as Green Garden and Evergrand and many reaseach institutes such as The Architectural Design And Research Institute of Henan Province. And we have always been enjoying good reputation around our partners domestically and internationally.

Our factory concentrate on the production of all kinds of fire doors from different materials such as galvanized steel, pine wood, chinese fir wood, 201/304 stainless steel and also fire resistant floating glass. Steel fire door is our highlight product, with advanced surface treatment such as powder coating, heat transfer printing and copper wiredrawing we win great advantage for our steel fire doors of high wear tolerance,high decoration performance, anti-damp performance and anti-rusty character and so on. As far as wooden fire door is concerned, we have painting free wooden fire door series, baking paint wooden fire door series and refuge room wooden fire door series.Now we can supply more than 100,000 fire door sets a year in our more than 50000㎡ existing workshop. We also have a new factory under construction which covers a field of 30 arces in Minquan of Shangqiu City,which is 200km away from our existing factory. By then our annual production ability can reach 300,000 fire door sets.

Our production ranges also to fire roller shutters, fire windows and smoke curtains of various customized sizes, colors and materials.

Zhongwo attaches great importance to technical explore and development of new products and technik. We organize a specialized technical panel who all have more than 8 years of R&D experiences in fire door industry for development of new products and technik. Thanks to their hard work we can lauch more than 5 patents a year.

Zhongwo always adheres to the value system of “creating value for customers, building platform for employees and developing brand for Zhongwo”. Under such value system, Zhongwo keeps looking for excellent partners to influence ourselves to become better. We keep striving in order to be a fixed star in the development history of door industry.
