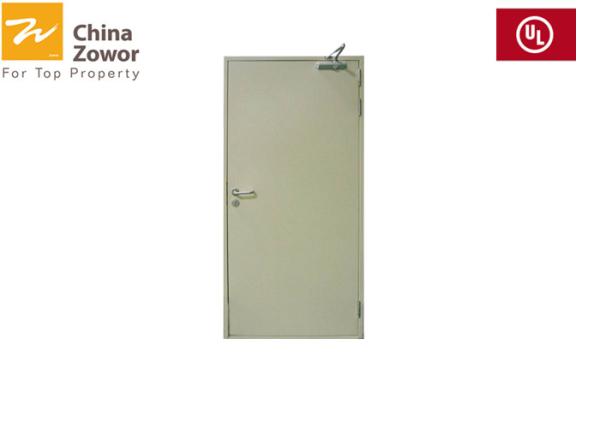

FD90 Steel Fire Door

Product Description

Zhongwo provide you with high quality 90 mins fire doors specially for bolier and electrical rooms. The Door leaf consists of 53 mm thick fireproof perlite board as infilling and galvanized steel plate with thickness of no less than 0.8mm as cover. The door frame adopts galvanized steel plate with thickness of no less than 1.2mm. Hardware fitting backboard adopts ordinary steel plate with thickness of no less than 3.0mm. And the surface treatment is finished, powder coated, heat transfer printing or copperdrawing process. Besides, we have different colors for your choice to get in harmony with your decoration style and all of our fire doors can be customized as your request.

Materials

Door Leaf--20-18- or 16-gauge face sheets of commercial grade galvanized steel

Door Frame--18-16-14-gauge face sheets of commercial graed galvanized steel

Sizes

We have standard size such as 3'X7' and 4'X8' for single doors and 6'X7' and 8'X8' for double doors.

Customized sizes are also available by us.

Standard

For UL steel fire doors: UL10(C) and UL 10(B)

For BS steel fire doors: BS476:22 and EN1634:1

Infill

--Honey comb core

Insulated honey comb core provides extreme rigidity and one of the highest flatness levels.This bonded to the face sheets with fire rated adhesive.

--Fireproof Perlite Board

We have also high density fireproof perlite boards as infilling materials, which presents high performance in heat insulation. Besides, this material is also extremly environment-friendly.

Reinforcements

· Top and bottom of doors shall be reinforced with continuous 16-gauge steel channels, spot welded to both sides of doors.

· Hinge reinforcements shall be 11-gauge steel angle, 12" long

· Cylindrical lock reinforcement shall be 16-gauge with 11-gauge thread depth. Other lock and closer reinforcements shall be 12-gauge.

· Doors shall be reinforced for all surface type hardware. Drilling and tapping of surface hardware to be done in the field by the erector.

· Edges of door shall be continuously seam welded, ground, and filled to ensure a smooth finish.

Finishes

Generally we adopt powder coating as standard finishes, but there are also prime paint and wood grain finish as your basic options.

Hardware

Two tested locksets and a heavy duty door closer come standard with this door, however operating hardware is available in all standard builders’ finishes. Mortise or cylindrical locksets, exit devices, and security hardware are the basic options.

Feature

Packaging&Delivery

1. Matured packaging team consisting of professional and well-trained packaging staff with quality packaging materials.

2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Henan Zhongwo Fire Science and Technology Co., Ltd, founded in 1995, is a rapid expanding manufacturing company in fire door industry. After 24 years development Zhongwo has become a leading fire door manufacturer all over in Central China. We are always keeping good cooperation relationship with many high-end real estate builders such as Green Garden and Evergrand and many reaseach institutes such as The Architectural Design And Research Institute of Henan Province. And we have always been enjoying good reputation around our partners domestically and internationally.

Our factory concentrate on the production of all kinds of fire doors from different materials such as galvanized steel, pine wood, chinese fir wood, 201/304 stainless steel and also fire resistant floating glass. Steel fire door is our highlight product, with advanced surface treatment such as powder coating, heat transfer printing and copper wiredrawing we win great advantage for our steel fire doors of high wear tolerance,high decoration performance, anti-damp performance and anti-rusty character and so on. As far as wooden fire door is concerned, we have painting free wooden fire door series, baking paint wooden fire door series and refuge room wooden fire door series.Now we can supply more than 100,000 fire door sets a year in our more than 50000㎡ existing workshop. We also have a new factory under construction which covers a field of 30 arces in Minquan of Shangqiu City,which is 200km away from our existing factory. By then our annual production ability can reach 300,000 fire door sets.

Our production ranges also to fire roller shutters, fire windows and smoke curtains of various customized sizes, colors and materials.

Zhongwo attaches great importance to technical explore and development of new products and technik. We organize a specialized technical panel who all have more than 8 years of R&D experiences in fire door industry for development of new products and technik. Thanks to their hard work we can lauch more than 5 patents a year.

Zhongwo always adheres to the value system of “creating value for customers, building platform for employees and developing brand for Zhongwo”. Under such value system, Zhongwo keeps looking for excellent partners to influence ourselves to become better. We keep striving in order to be a fixed star in the development history of door industry.
